DAF has packed IAA Transportation 2026 with hardware that addresses payload, range, uptime, and driver retention. The Dutch truck maker occupies Hall 21 in Hanover from September 15-20, using new axle layouts and battery positions to widen the jobs its trucks can handle.
Four Trucks Explain DAF's IAA 2026 Strategy
Looking at the data, DAF has expanded choice instead of forcing one driveline or axle layout across incompatible duty cycles.
| IAA focus vehicle | Core hardware | Key figures | Primary operating role |
|---|---|---|---|

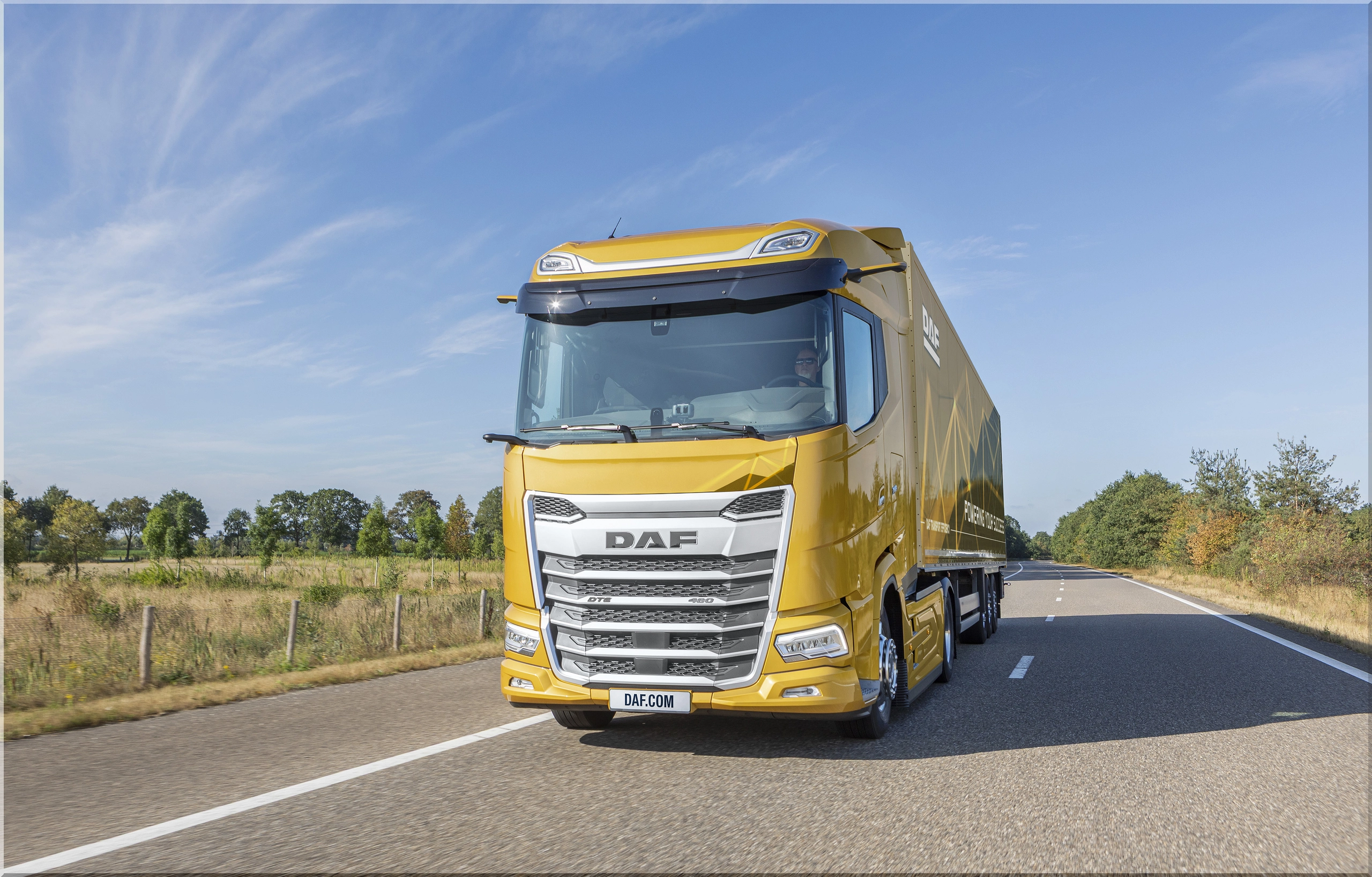

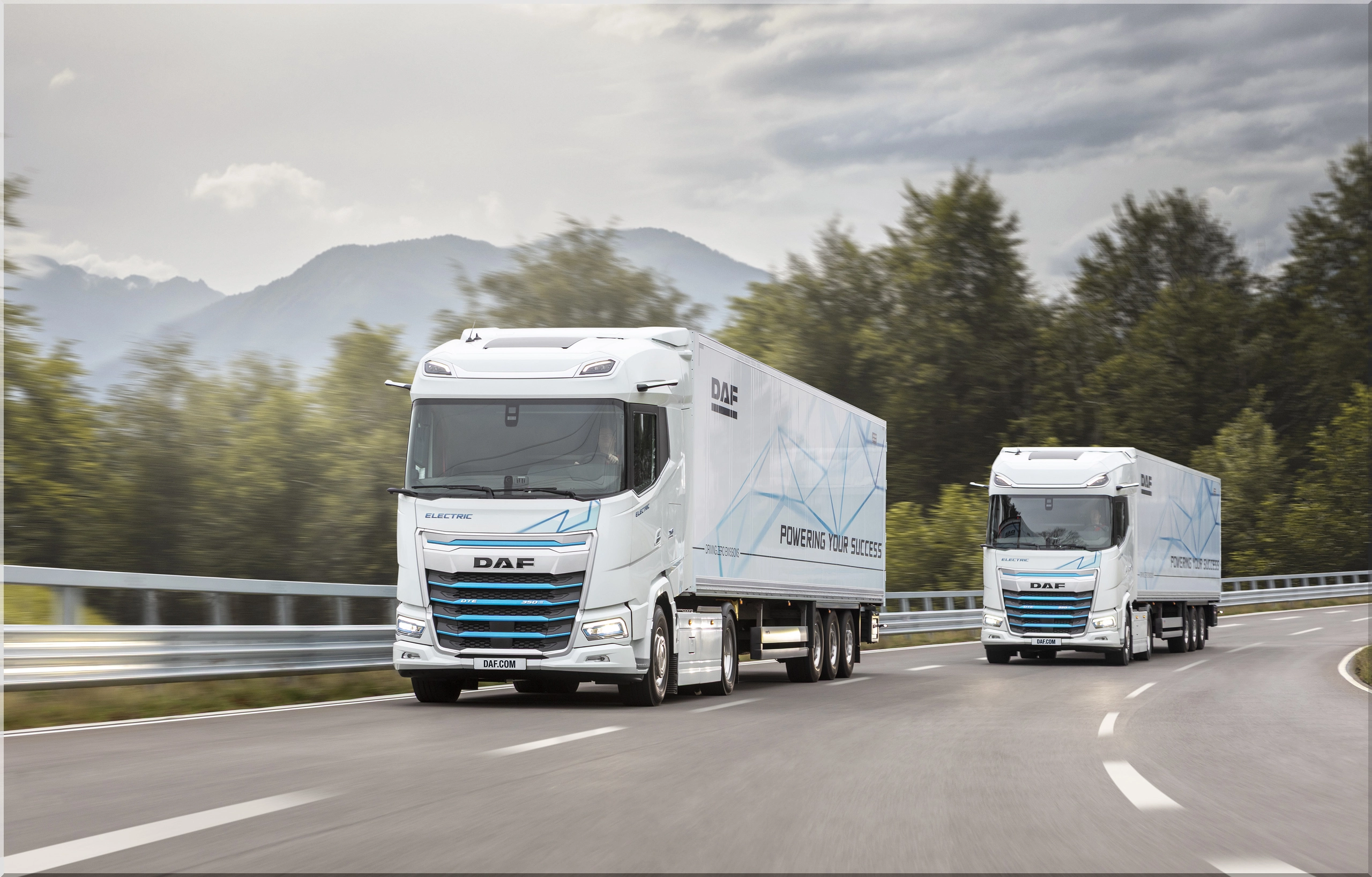

| DAF XG+ Electric | PACCAR EX-D2 twin-motor unit; integrated 3-speed transmission | 270-350 kW; 2,400 Nm; 315-525 kWh, depending on output | Long-distance battery-electric haulage |

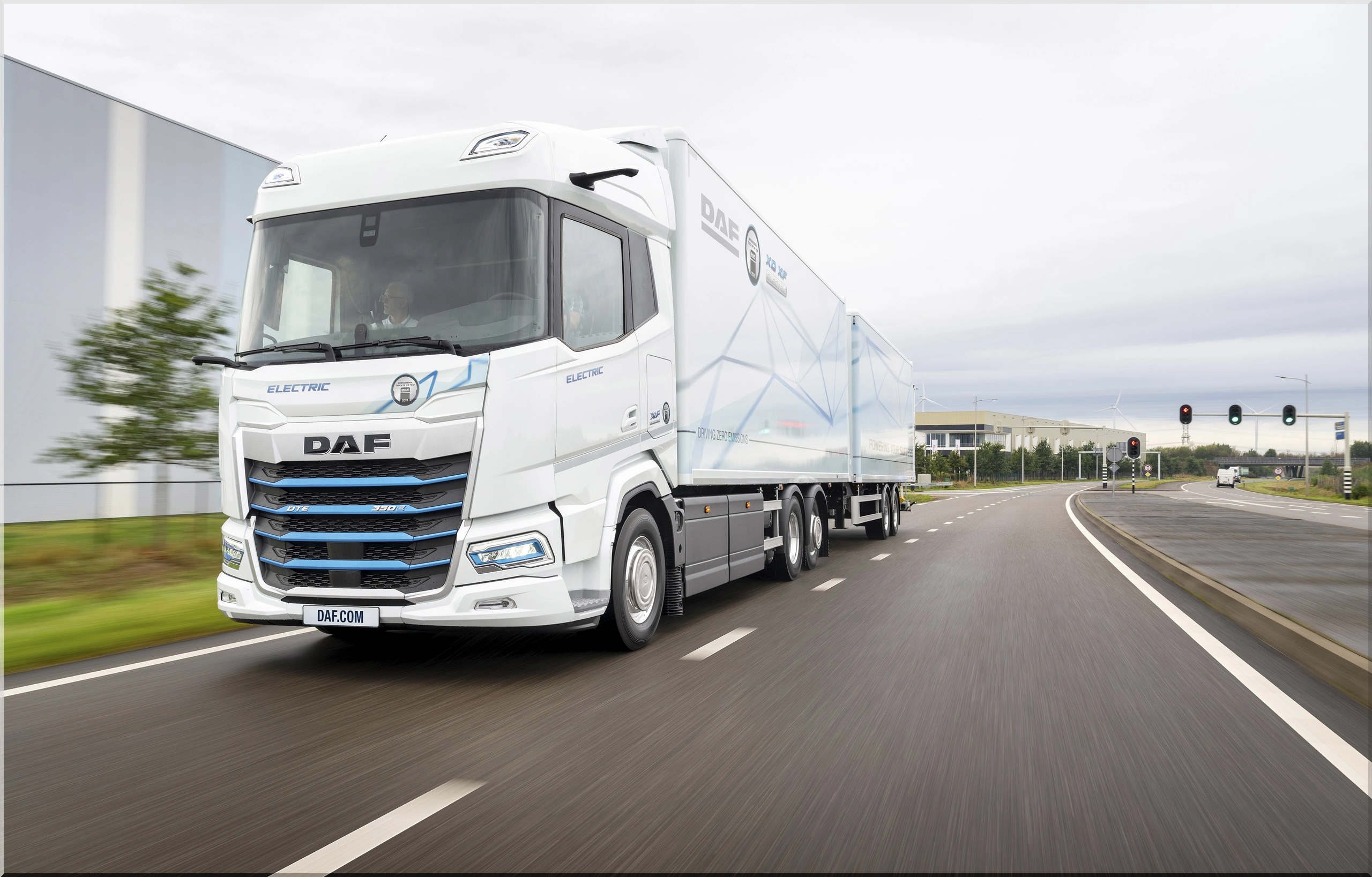

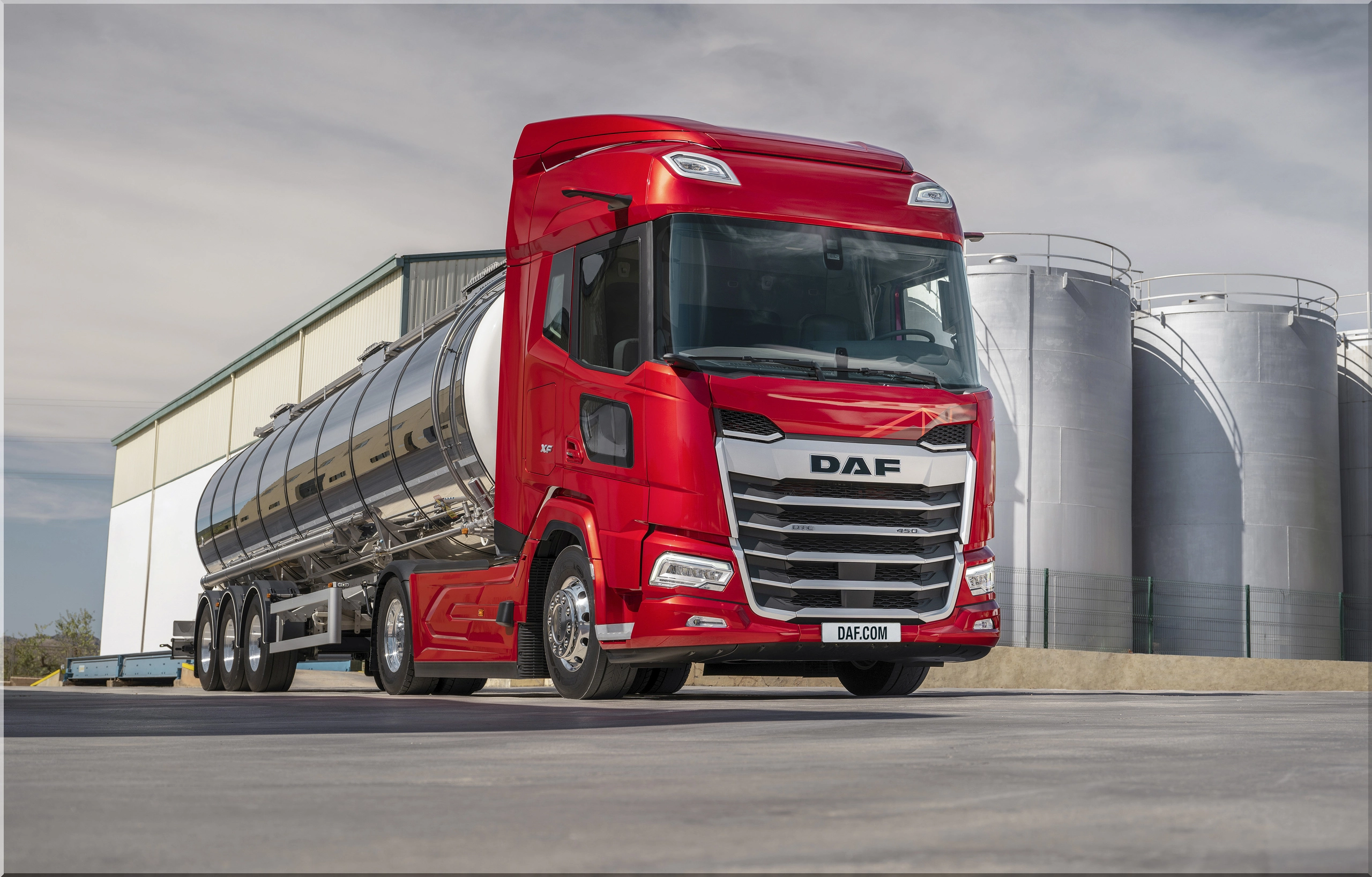

| DAF XF Electric | PACCAR EX-D1 or EX-D2 | 170-350 kW; 210-525 kWh; CCS2 charging up to 325 kW | Regional, national, and body-on-chassis work |

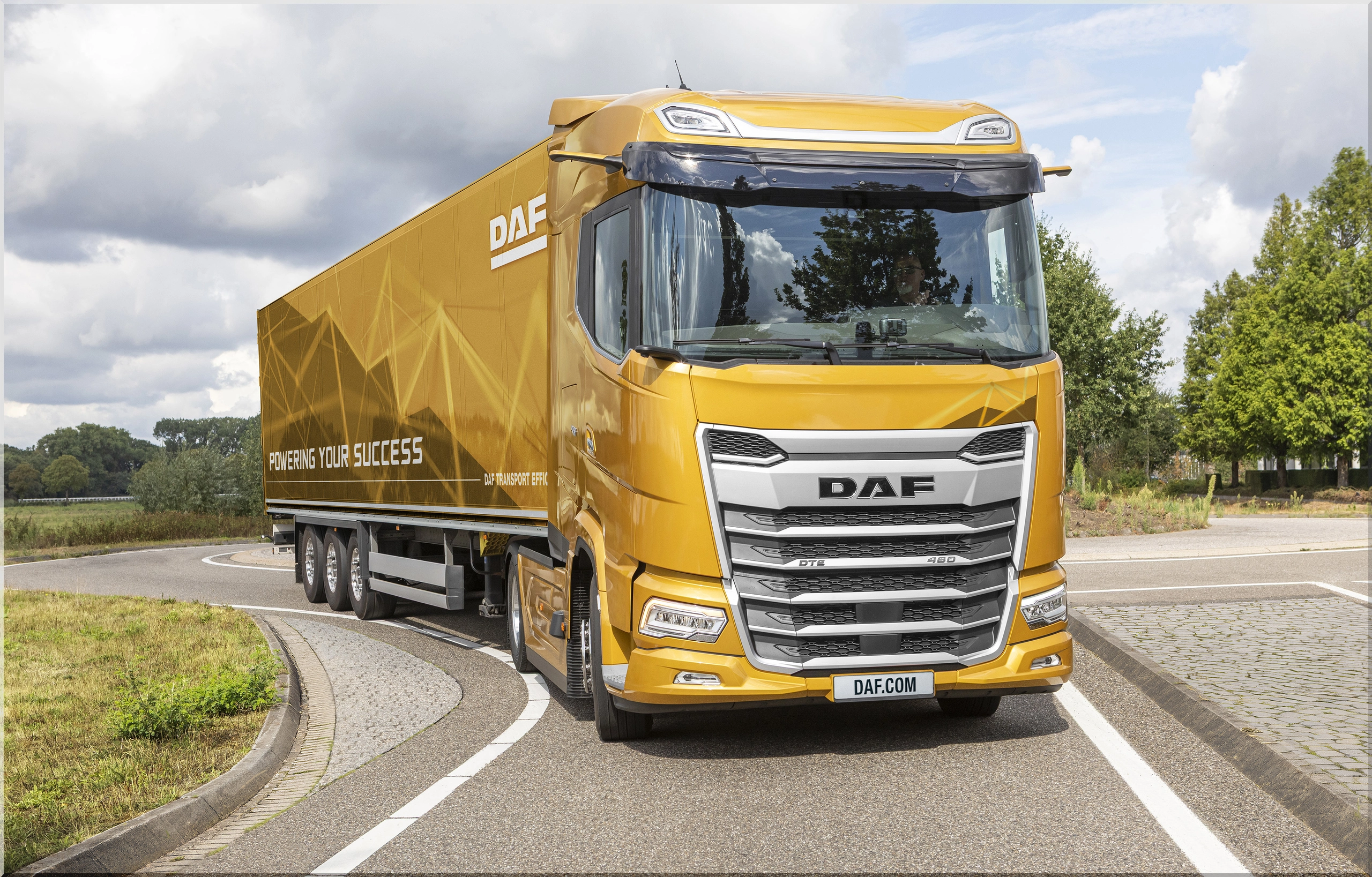

| DAF XG+ 480 | 12.9-liter PACCAR MX-13; 12-speed TraXon | 355 kW/480 hp; 2,500 Nm from 900-1,125 rpm in top gear | Diesel long-haul tractor work |
| DAF XF 530 10x4 | 12.9-liter PACCAR MX-13; TraXon | 390 kW/530 hp; up to 2,700 Nm; technical GVW up to 54 tonnes | Heavy construction and specialist rigid work |
The electric driveline uses two motors to bridge torque delivery during its three gear changes. That design limits shift interruption under load, which helps traction and driver control. In addition, DAF quotes more than 550 km, or 342 miles, from one charge for its updated electric truck range; a 420 kWh configuration can reach 80% charge in about 45 minutes with suitable DC equipment.
New Axle Layouts Put Payload First
The DAF IAA 2026 innovations focus heavily on chassis geometry. Specifically, the factory-built 10x4 gives XD and XF buyers a five-axle answer for high-mass construction jobs, while new low-deck variants create more vertical room for vehicle carriers.
| Chassis change | Technical data | Operating effect |
|---|---|---|
| XD/XF 10x4 rigid | Two steered front axles rated at 8, 9, or 10 tonnes; 34-tonne rear tridem; technical GVW up to 54 tonnes/119,050 lb | Spreads heavy loads and retains low-speed steering response |

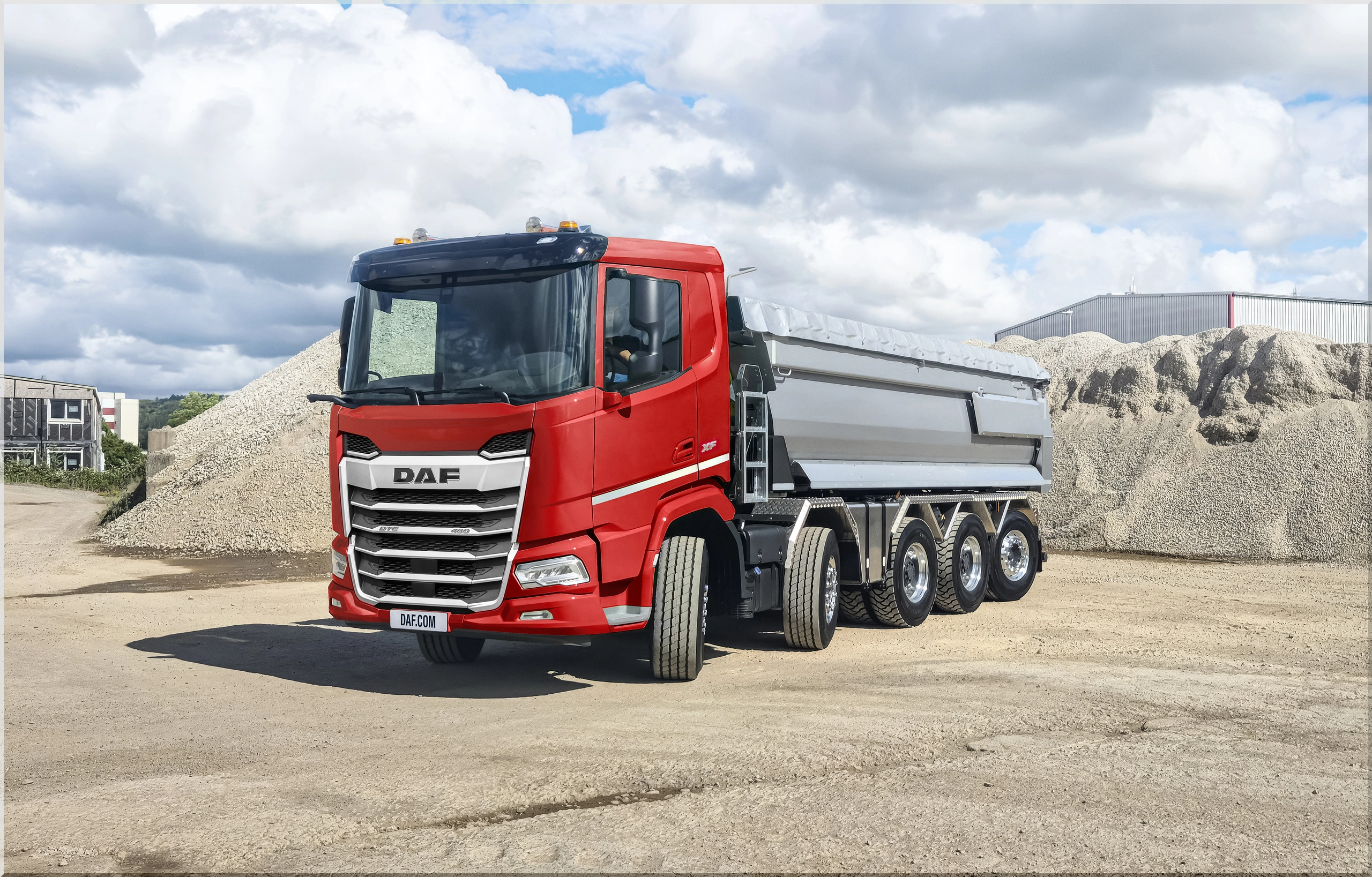

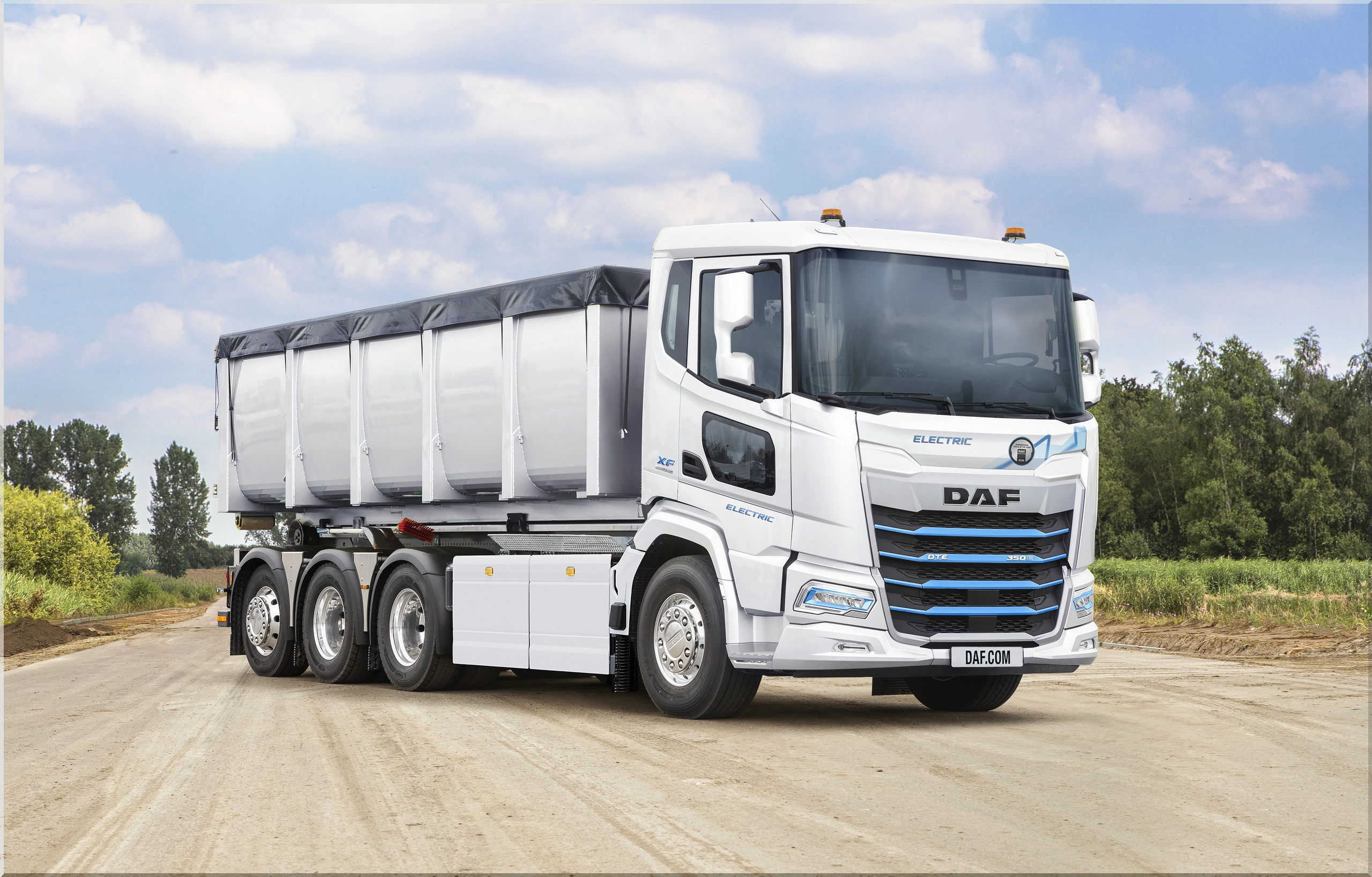

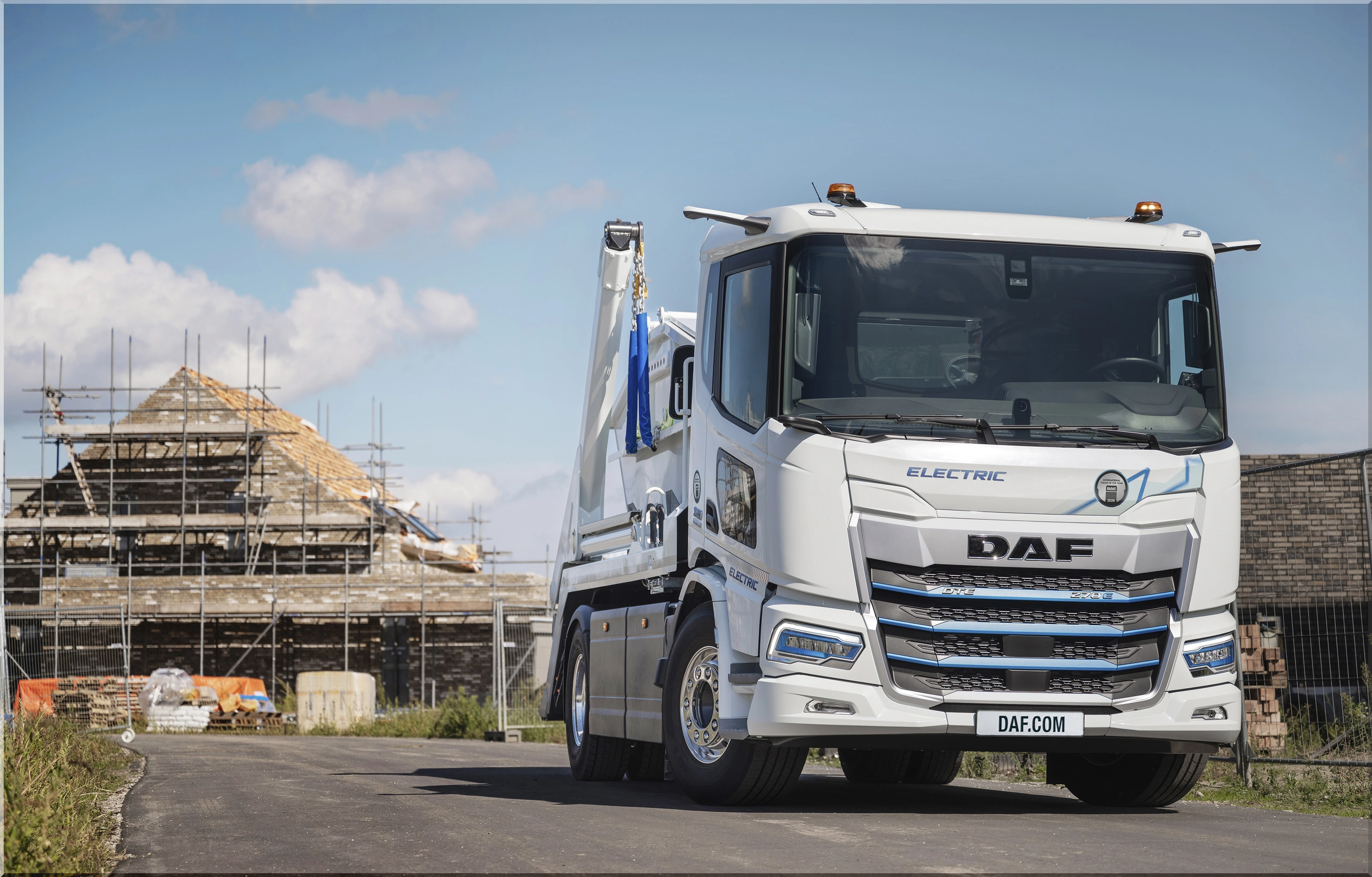

| Electric 6x4 and 8x4 rigids | Driven tandem rated at 19 or 21 tonnes; single or hub reduction | Supports traction-led construction duty |
| Electric 6x2 rigid | Double-mounted, 10-tonne steered trailing axle | Adds payload capacity for tippers and demountable containers |
| Electric BDF chassis | 4x2 or 6x2; up to five battery packs | Keeps twist locks accessible for swap bodies |
| Car-transporter chassis | 830 mm/32.7 in chassis height; suspension lowered 40 mm/1.6 in; 22.5-inch low-profile tires | Adds loading room inside the 4,000 mm/157.5 in legal vehicle height |
| XD low-roof option | Roof lowered 180 mm/7.1 in, with a sloped-roof alternative | Creates space to carry a vehicle above the cab |
By comparison, a basic axle-count increase would add capacity but penalize steering and tire wear. DAF counters that risk with two steered front axles plus a liftable, steered rear axle. The layout distributes mass across five axles while letting operators lift the trailing axle when conditions permit.
Battery Placement Turns Weight Into Revenue
DAF removes the under-cab battery from its new layout and moves up to four packs farther rearward. The change reduces front-axle load by roughly 700 kg, or 1,543 pounds, and DAF says it can release up to 2.5 tonnes, or 5,512 pounds, of payload capacity.
Consequently, the relocation attacks a common electric heavy-duty truck constraint: front-axle capacity can run out before the truck reaches its legal total mass. The legal allowance of up to two extra tonnes for an electric truck also lets some XD, XF, XG, and XG+ Electric configurations carry up to 500 kg, or 1,102 pounds, more payload than a comparable diesel truck.
From an expert perspective, bulk, tank, container, and construction operators should scrutinize this change before adding another battery pack. Excess battery capacity carries a direct weight cost on every trip.
TruckIQ and Cab Upgrades Protect Productive Hours
DAF TruckIQ connects the truck, fleet, and dealer through PACCAR Connect. Its three services target avoidable workshop time:
- Remote Updates let drivers install routine software during a parked rest period.
- PreDiagnostics sends fault codes and operating data to the dealer before arrival.
- Smart Service Alerts flag abnormal patterns early enough for planned action.
DAF also adds eye monitoring that warns after the driver looks away from the road for more than six seconds, onboard fuel tracking, and vehicle-combination weight reporting.
The new Single Driver Luxury Package adds a 900 mm/35.4 in Relax Bed and as much as 290 liters/10.2 cubic feet of rear-wall storage. XG and XG+ cabs stretch 330 mm/13.0 in past the XF, offering up to 12.5 cubic meters of space and 2,200 mm/86.6 in of standing height.
Pro-Tip: Which Innovation Offers the Clearest Fleet ROI?
Start with a 30-day duty-cycle record, then take three steps:
- Map daily distance, depot dwell time, payload, and axle weights.
- Select only the battery capacity that covers the route with a working reserve; unused capacity consumes payload.
- Price the rearward four-pack layout for dense freight, the 10x4 for heavy vocational work, and the 830 mm chassis for car transport.
DAF's IAA program gives operators more ways to match hardware to revenue work. The winning specification will carry the required load, fit the charging window, and spend fewer hours off the road.
